Quick facts about
HDC 500

  • Speed: Programmable speed control from 1 Km/hour to a maximum of 7.2 Km/hour
  • Runtime: 16hrs continuous / 22hrs standby.
  • Capacity: 500 Kgs.
  • Dimensions: 817x692 mm.
  • Movement: Forward & Reverse.
  • Rotation: Depending on the length of the trolley.

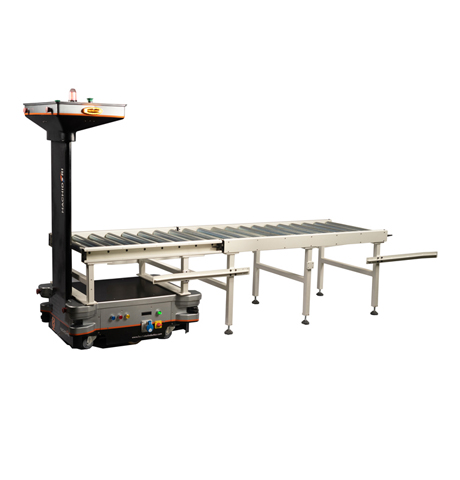

product image

Technology Benefits

  • Programmable speed: 1kmph-7.2kmph
  • Patented technology: 1st Unique indoor wireless natural navigation system
  • Deployable areas: Both Greenfield and Brownfield Projects
  • No Flooring changes: No expensive magnetic strips, floor markings needed

Product Benefits

  • Reduction in Working Capital locked: On time material delivery with material movement tracking(24x7)
  • Reduction in Operating expenses: Visible gains in Productivity and Operating expenses with AMR available as service
  • Optimized Movement: Flexibility of AMR allows optimal movement of material which provides insight of the factory based on material movement
  • UBER of AMR: On demand AMR inside your factory

Specification

Features Variant HDC 500
Dimensions 817x692x295mm
Movement Forward & Reverse
Speed 1kmph - 7.2kmph(programmable)
Battery & Charging cycle LiFePo4(Upto 16 hours of continuous operation, 2 hours for charging).
Rotation In-place rotation.
Safety standards UL 1012, UL 60950
Obstruction Detection 2 D LIDARS & Optional depth camera
Navigation Wireless Natural Navigation
Incline angle 2° for short distance
Capacity 500Kgs

Other Products

...

Unit Load Carrier Solution HU

The Load On Top variant of AMR 200/500 Kgs capacity. Moves material with minimal human involvement.

...

Tugger Solution HT

Tugging solution with one or more wagons to be tugged – suitable for bulky light weight materials, off shape materials.

...

Tunneling Solution HL

The Lift & move solution for lifting existing materials trolley and platform.

...

Autonomous Pallet movement HPC

AMRs to lift & move standard Palletized materials.
